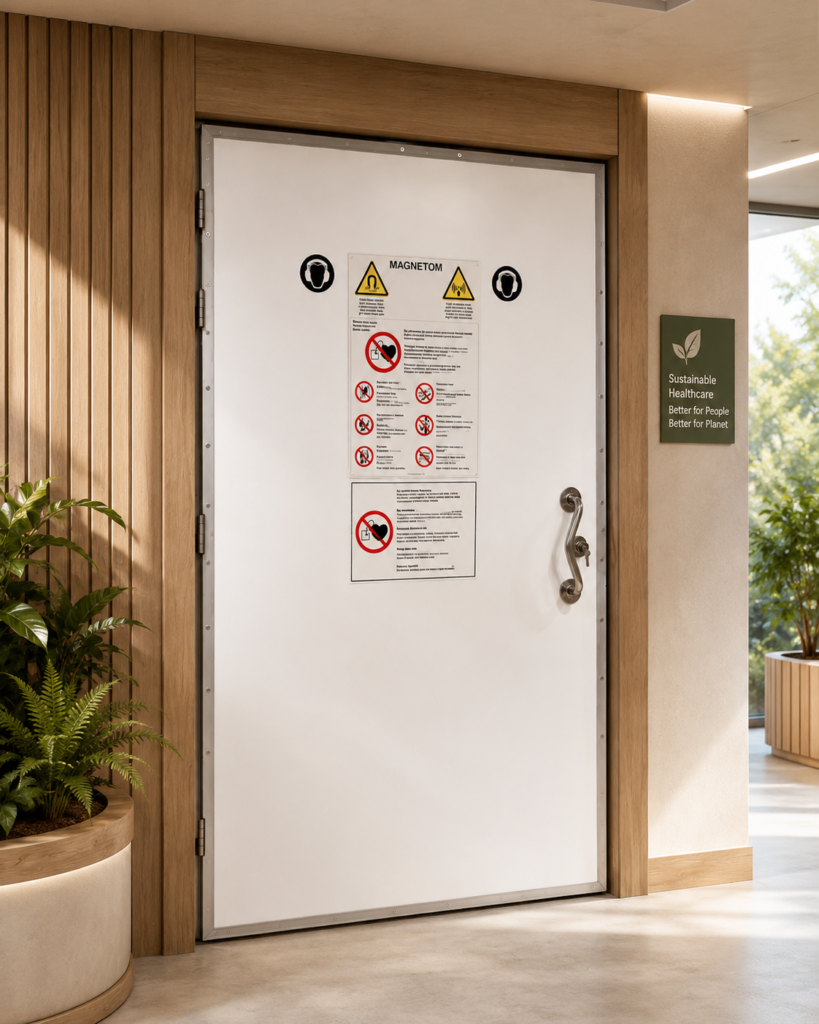

MRI RF Shielded Doors

RF shielded MRI doors are designed for high-traffic MRI environments, providing reliable RF integrity, acoustic comfort, hygienic surfaces and user-friendly operation.

Shwehna Group supplies MRI Room RF Door systems for RF-shielded magnetic resonance (MRI) rooms, where electromagnetic shielding performance, operational reliability, and long service life are essential.

These doors are suitable for hospitals, diagnostic imaging centers, and healthcare facilities requiring dependable RF shielding and user-friendly operation. The MRI Room RF Door can be supplied in standard or pneumatic door options according to project requirements.

According to IEEE 299 Standard:

• Magnetic shielding attenuation value: >100 dB in the 1–30 MHz range
• Electrical shielding attenuation value: >100 dB in the 30–160 MHz range

Technical Features

• Standard clear opening: 1.22 m × 2.13 m, with custom dimensions available upon request
• High RF shielding performance for MRI environments
• Available in standard or pneumatic door options
• Pneumatic version with air-driven inflatable gasket for full RF sealing
• Sound insulation: >44 dB(A)
• Acoustic rating: STC-40
• Low-profile threshold suitable for patient transfer
• Hygienic, easy-to-clean surfaces
• Durable aluminum frame with steel-reinforced structure
• Finish: high-pressure laminate or optional custom colors
• Easy maintenance and long-lasting use
