MRI RF Shielded Cabin Systems
High-Performance Modular RF Shielding Solutions for MRI Facilities
Overview

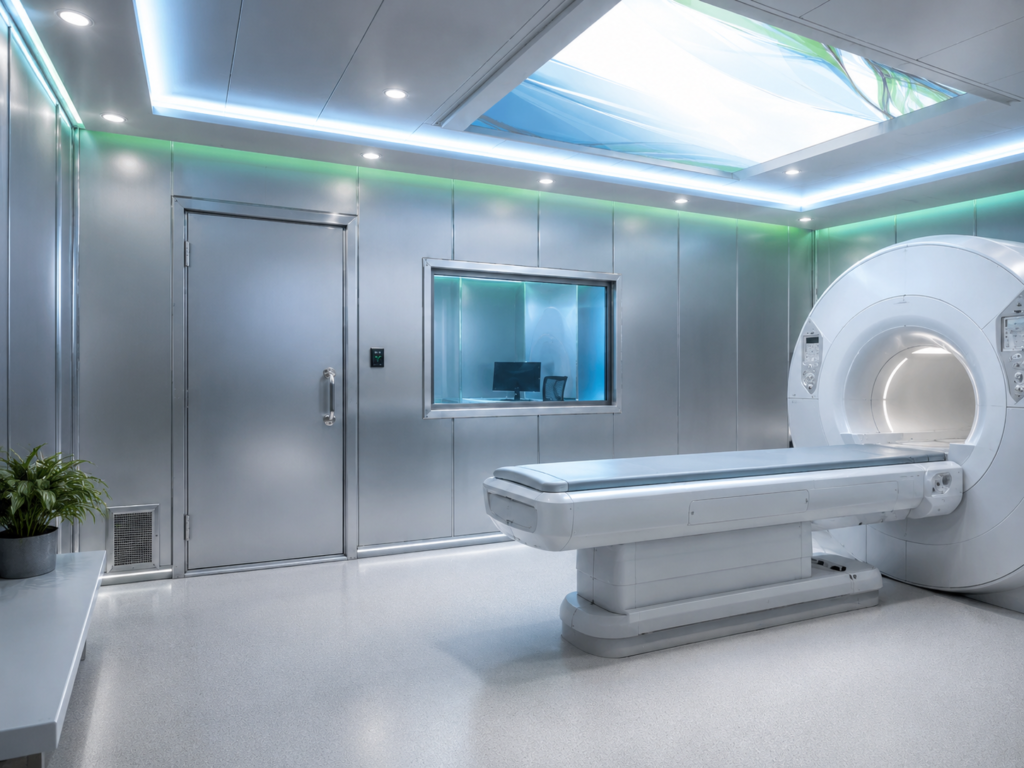

Shwehna Group RF Cabin Systems are engineered to provide high-performance electromagnetic shielding solutions for MRI installations and other sensitive medical environments. Our modular RF cabins are designed to ensure reliable attenuation performance, rapid installation, long-term durability, and full integration with MRI room requirements.
Construction & Design
Shwehna Group RF Cabin Systems provide advanced electromagnetic shielding solutions for MRI facilities, ensuring reliable RF attenuation, long-term durability, and seamless integration with modern healthcare environments.

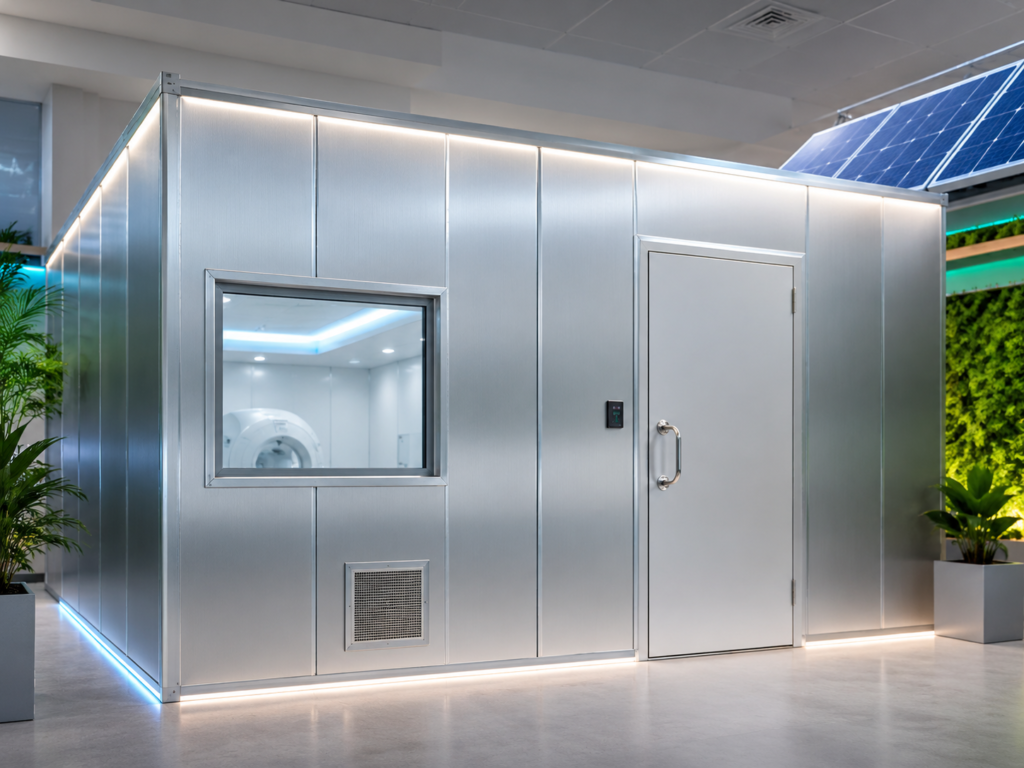

Our RF cabins utilize a high-strength composite sandwich panel construction, manufactured by pressing specially treated stainless-coated steel sheets onto premium MDF panels on both sides. This design delivers excellent structural rigidity, superior shielding performance, acoustic comfort, and efficient installation.
Designed to meet the demanding requirements of MRI projects, our modular RF cabins offer flexibility for various room layouts while maintaining exceptional shielding integrity and operational reliability.
Key Features
- High RF shielding performance for MRI environments
- Modular and flexible construction for rapid installation
- Composite stainless-coated steel and MDF panel structure
- Excellent rigidity and torsional resistance
- Impact-resistant design with no panel sagging
- Acoustic insulation for a quiet examination environment
- Corrosion-resistant and durable materials
- Underfloor insulation system with 3 mm membrane
- Easy maintenance and replacement of modular components
- Baseplate fabrication and integration
- Quench pipe integration capability
- RF filter panel openings
- MR-compatible 600 × 600 mm LED lighting systems
- RF EMI power filters (16A, 25A, 50A)
- RF shielded MRI windows in standard or custom dimensions
- RF shielded MRI doors with manual or pneumatic options
- Magnetic RF door switch systems
- EMI/RFI shielded waveguide air vents
- Custom medical gas and injector cable penetration systems
Technical Performance
Our RF cabins are manufactured in accordance with IEEE 299 shielding performance standards.
- Magnetic shielding attenuation: >100 dB (1–30 MHz)
- Electrical shielding attenuation: >100 dB (30–160 MHz)
- Shield-to-ground insulation resistance: >3 kΩ
Custom Manufacturing Options
Custom RF cabin systems can be produced using stainless-coated steel, aluminum, or copper shielding structures according to specific project requirements, technical specifications, and customer preferences.
Technical Performance
Our RF cabins utilize a high-strength composite sandwich panel construction, manufactured by pressing specially treated stainless-coated steel sheets onto premium MDF panels on both sides. This design delivers excellent structural rigidity, superior shielding performance, acoustic comfort, and efficient installation.
